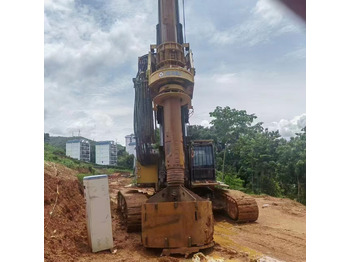

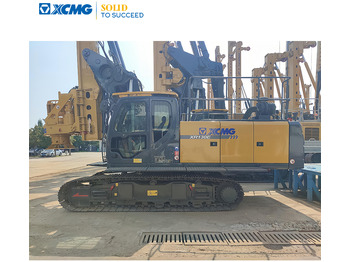

Leasing de XCMG Official Second Hand Piling Rig Rotary Drilling XR280E Used Drill Rigs For Sale
Publicado: 6mes(es) 15d.
Publicado: 6mes(es) 15d.
Drill Hole Diameter:2500mm
Drill Hole Depth:94m
Bit Type:Multifunction
Drilling Way:Rotary
Type:Crawler
Rated Power:315kw
Rotary Speed:6-27r/Min
Max. Output Torque:300kN.M
Min. Clearance:445mm
Specification:10825*4800*25200 mm
Optimally designed double swing arm luffing mechanism and optimized hinge point position take account of the construction stability and the transportation convenience at the same time.
It adopts H-type hydraulic retractable crawler chassis dedicated for rotary drilling rigs and large-diameter slewing bearing to ensure superior stability and convenient transportation.
It adopts imported Volvo engine with strong power, which effectively reduces fuel consumption and use cost.
The hydraulic system adopts load sensing technology with total power control and limit power control, making the hydraulic system more efficient and energy-saving, independent radiator system provides high heat dissipation efficiency.
The proprietary single-row rope main winch of XCMG effectively solves the twine problem and greatly prolongs the service life of wire rope.
The rotary drive owns normal mode special for soil layers and rock-entering mode special for rock formations, which improves construction efficiency, the autorotation of rotary drive can achieve continuous adjustments of speed in normal mode and rock-entering mode.
Standard centralized lubrication system makes the maintenance more convenient and improves working reliability.
