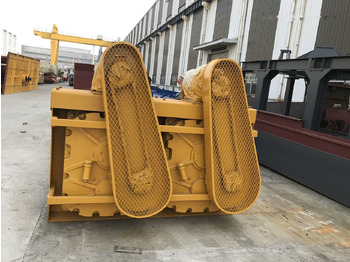

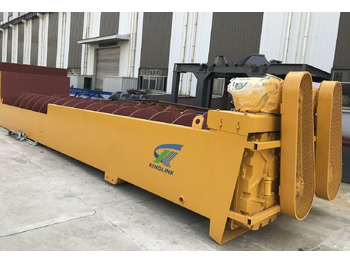

Leasing de Kinglink Twin 44''X32' Fine Material Washer | PSST4432 | TTSW4432

KINGLINK Fine materials sand washer Twin Shaft 44X32 Specifications:

- Number of screws: 2

- Screw diameter (Inches): 44"

- Tub length (Feet): 32'

- Max. feed size (Inches): 3/8"

- Capacity (TPH): 350

- Screw speed (RPM): 17

- Recommend motor (HP): 2 x 25 HP, 1800 RPM, TEFC (optional)

- Water requirement (GPM): 700-2400

- Weight (LBS): 40,280

- Drive Sheave (Inches): 7-3/4", 3 Groove, C-Section (optional)

- Driven Sheave (Inches): 10-11/16"

Features:

- Heavy-duty tub.

- All welded trough minimizes leaks and extends life.

- Minimal screw/tub clearance.

- Ribbon type, continuous one-piece auger.

- Overlapping shoes and AR paddles for added auger protection.

- Overflow pipe.

- Greaseable lower bearing assembly.

- Extra heavy-duty gearbox.

- 68:1 reduction ratio.

- Heat treated, helical cut precision gears.

- Oil bath gear box lubrication.

- Standard mounting leg.

- Drive belt guards.

Also known as: Sand Washer, Sand Screw, Twin Shaft Sand Washer.
